edgetech cleanroom ahu

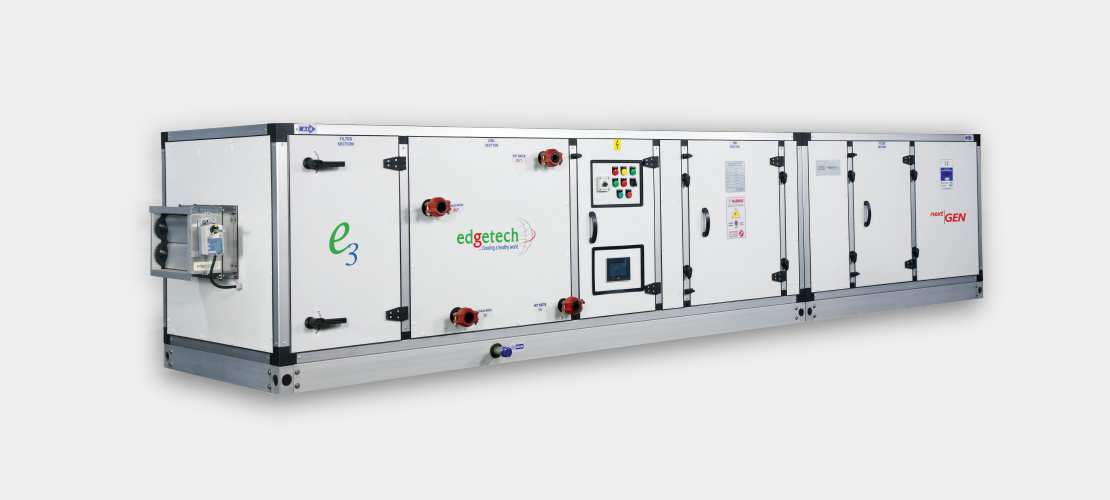

Cleanroom AHU

E3 Cleanroom AHU by Edgetech is especially designed to minimize the introduction, generation and retention of particulate and microbial contaminations in healthcare industry.

Catalogue

View our financial prospectus catalogue.

Brochures

View our financial prospectus brochure.

Features And Benefits

  • Unique design thermal brake profile and panel to meet the International standard for leakage class.
  • Corrosion resistant aluminium profile with special designed coving.
  • Rigid frame work design inherent to the casing strength and stability.
  • Wide range of casing constructions materials to select from SS-304/316, aluminium, galvanized steel 120/270 GSM, Galvalume and many more...
  • Unit certified as per EN1886.
  • Controls airborne particles, dust and micro-organism through air filtration using highly efficient low pressure drop particulate air filters.
  • AHRI certified heat transfer coil ( CHW and HW )
  • Option of factory fitted valve package for plug and play operation.
  • Overall packaged with grand features like inbuilt electrical control panel with intelligent controls and sensors for automation, leading to optimum efficiency and major energy savings.
  • BMS ready connectivity with option of manual operation as a standard feature.
  • Uniquely designed, multi slope drain pan to maintain hygienic conditions.
  • Environment friendly CFC/HFC free PUF injected double skin panels.
  • Aluminium aerofoil damper to ensure the minimal leakage percentage.
  • Highly efficient operations with substantial power savings
  • Extremely low noise levels resulting in silent operations
  • Minimal leakage percentage
  • Minimizes air borne contamination thus maintaining hygienic conditions
  • Multiple EC/Plug fans provided in compact casings, covers the risk of shutdown due to any breakdown of fan or motor.
  • Option of Plug fans/ DIDW fans with IE2, IE3 and IE4 motors with factory fitted VFD is also available.
  • Customization of the Air Handling units as per your requirements with a range of options:
    • Treated fresh air units in CHW/DX Configurations
    • Rooftop or outdoor installation
    • Optional profile thickness: 25mm/50mm
    • Filtration options for suitable indoor air quality
    • Hydrophilic or anti corrosive coating on coils
    • UV lamps/Heater/Humidifier/PHIO +
    • Heat Recovery Options (wheels or coils)
  • Specially designed for pharmaceutical and cleanroom applications
  • Suitable for healthcare industry
×
