edgetech fcu

Chilled Water Cassette

Catalogue

View our financial prospectus catalogue.

Brochures

View our financial prospectus brochure.

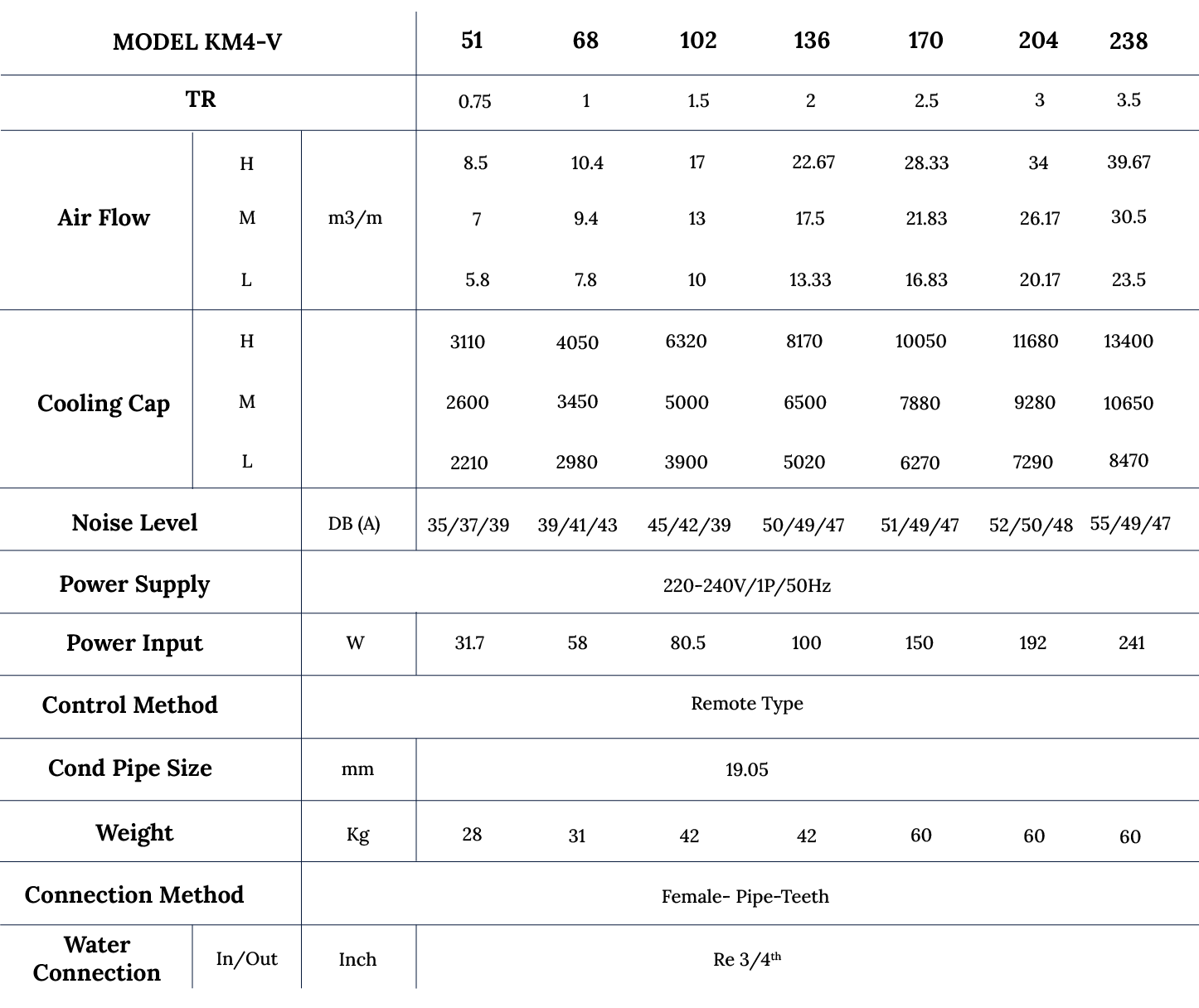

Technical Specification

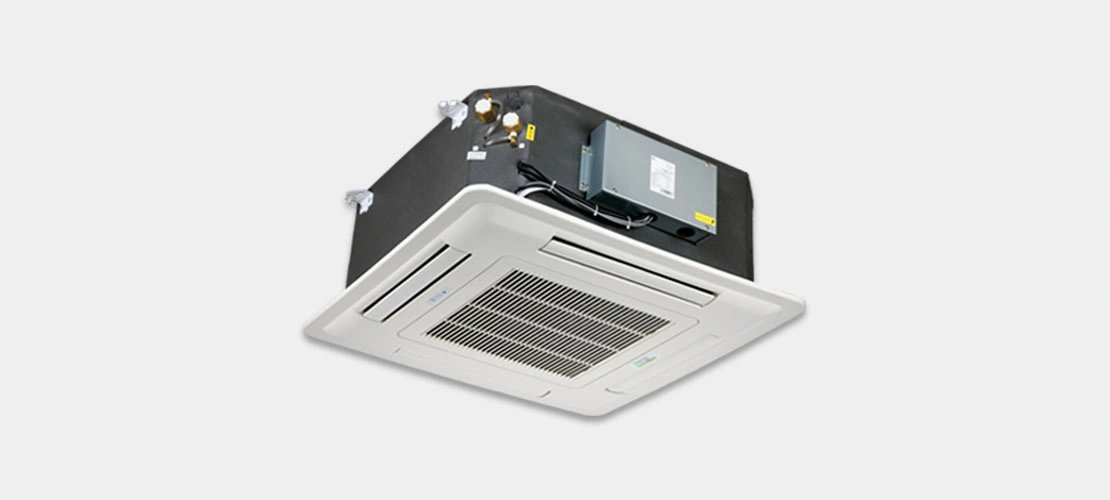

edgetech Chilled Water Cassettes
  • The cooling capacity is based on inlet air temp: 27°C DB/19.5 °C WB inlet water temp 7°C, outlet water temp:12°C.
  • The heating capacity is based on inlet air temp: 20°C DB inlet water temp: 70° C with the same air flow rate and same water flow rate.
  • Inbuilt condensate drain pump.
  • Elegant looking ABS grill with louvers.
  • Provides superior air distribution with airflow in all four different directions, helps planners to provide cooling in all areas.
  • Electrical terminal box with electrical wirings provided.
  • 3 speed motor with 230 V/ 50 Hz, class B insulation with an integrated over thermal contact for motor protection.
  • Heat exchanger made of copper tubes, mechanically expanded into aluminium fins for maximum thermal contact.
  • ABS polystyrene foam drip tray. Designed for the optimization of air diffusion.
  • 2 or 3 way control valves are available as an optional accessory, delivered separately (not mounted on the unit).
  • Synthetic washable filter that is easily removable from the unit for serviceability.
  • Float switch centrifugal pump of maximum head, integral with the unit and wired to the main control panel.
  • Wireless remote control with LED display is standard
  • Elegant and slim design
  • Vertical swing louver control
  • LCD display
  • Wireless 3m transmission
  • Operation modes (Auto/Cool/Dry/Fan)
  • ON/OFF Timer
  • Temperature control range varying from 170 C to 30o C
  • Fan speeds selection
×
